Dimensions
Outer diameter
42.5mm
Length (inc. battery*)
1400mm
Weight (inc. battery*)
8kg
Operational environment
Operational temperature
0° to +70°C (32°F to +158°F)
Depth
4000psi
Shock
500g (inc. bump sub)
Performance
Azimuth**
±0.4° (at 0° latitude)
Dip
±0.25°
Data
CSV export
Survey time
Up to 100m/minute
Survey modes
Singleshot & Multi-shot NS (±30° to ±90° dip)
Continuous NS (±30° to ±80° dip)
Continuous Manual Ref.*** (±30° to ±30° dip)
Battery
Type
Ni-MH rechargeable batteries
Operating time
15 hours each
Field chargeable
Yes, 2 batteries supplied per kit
Data
Quantity
11 hours continuous survey data
Export
USB and WIFI
Format
CSV
*Excluding running gear
**Results depend on latitude and inclination. Accuracy quoted at 1σ and -70deg dip
***Using rig alignment device for starting reference
-

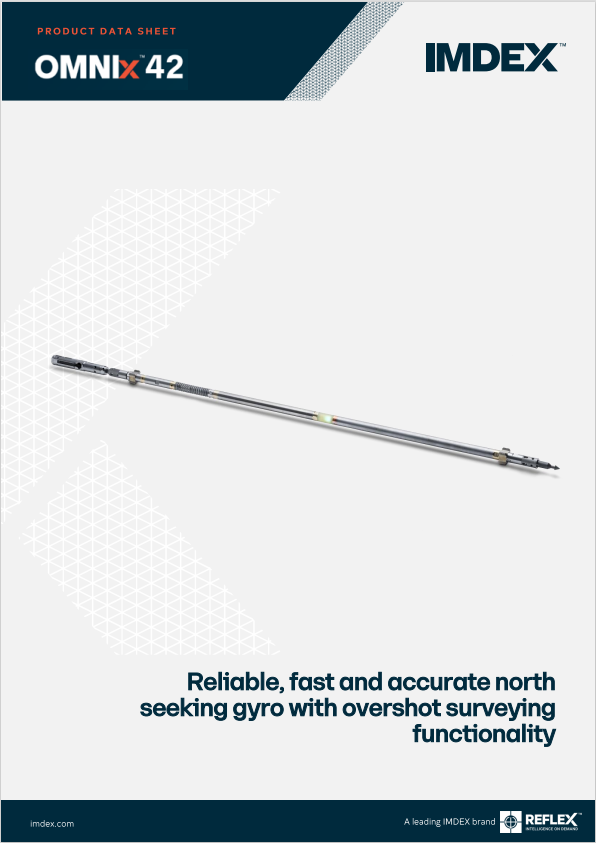

Product Data Sheet
