ACTx is a groundbreaking, digital core orientation system that enhances safety, accuracy, and time to orient core at the drill rig site.
The ACTx design provides drillers with a safer, lighter, quicker core orientation solution. The patented orientation jig guarantees a sharp and high-quality mark on the core face and along the core edge.
ACTx offers resource companies and geologists accurate, high quality, auditable data that seamlessly transfers into a secure digital platform.
Constrained marking guide provides sharper, more accurate guide
Smaller, lighter tool with enhanced workflow
Orientation jig has 30-day battery life (approx.)
Core sizes: H, H3,N, N3, N2
Automated QA/QC & integrated workflow
High quality, auditable data
It’s quicker than the ACT III tools – we’re orienting core faster
Driller Offsider, During Field Trials
The lightweight design and size of the tool is great
Senior Driller, During Field Trials
The buttons are a vast improvement
Driller, During Field Trials

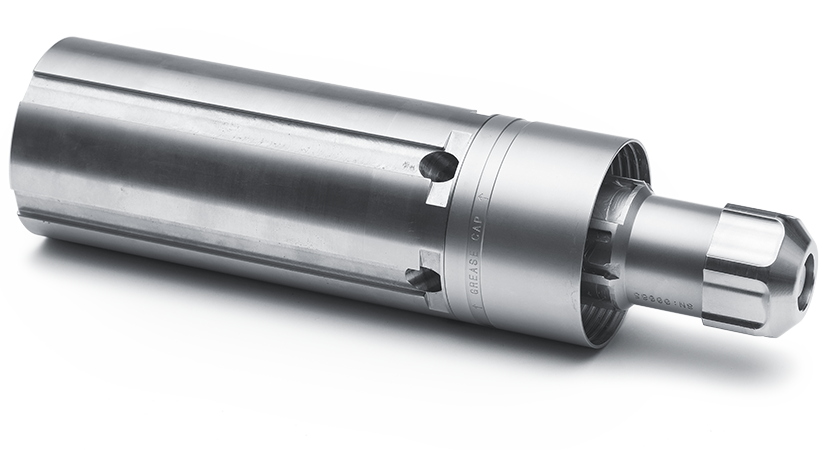

H adapter grease cap configuration
Single sized DHU, using adapters and grease caps to adapt to different sizes

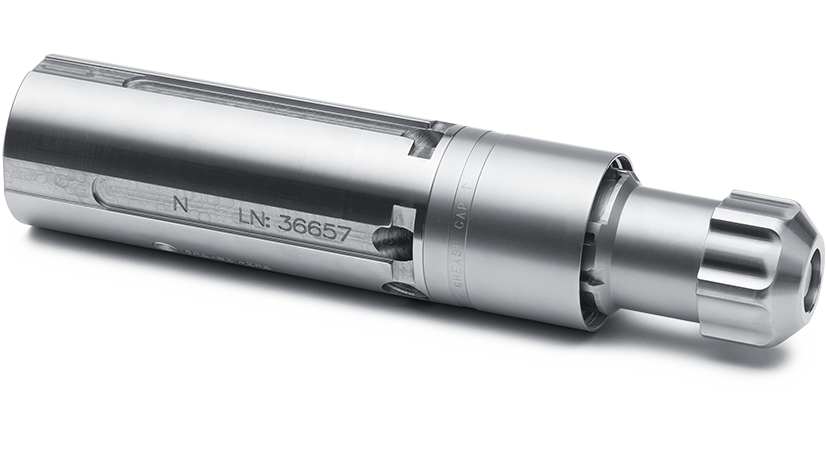

N adapter grease cap configuration
Single sized DHU, using adapters and grease caps to adapt to different sizes

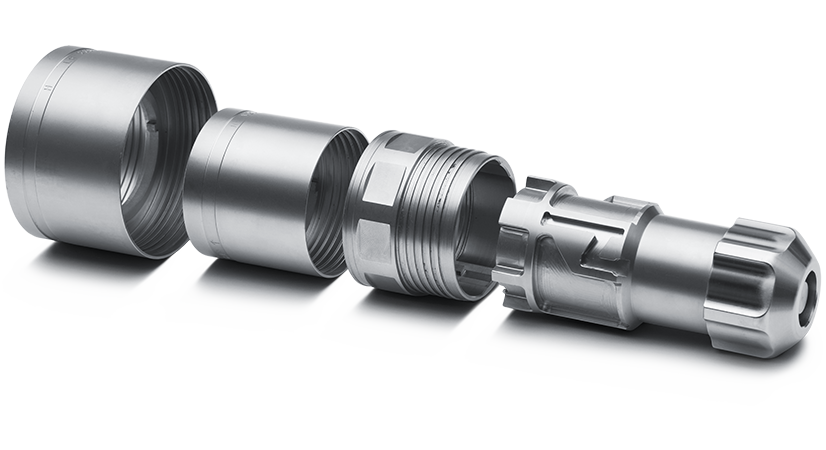

H, H3, N, N3, N2 and body adapters
Single sized DHU, using adapters and grease caps to adapt to different sizes

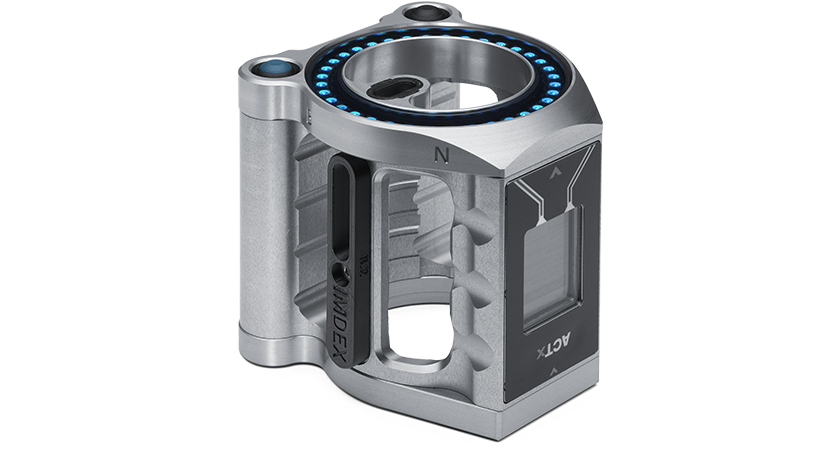

ACTx Orientation Jig
Orientate the core without rotating the tube. Capture information regarding the quality of the orientation mark and reading.

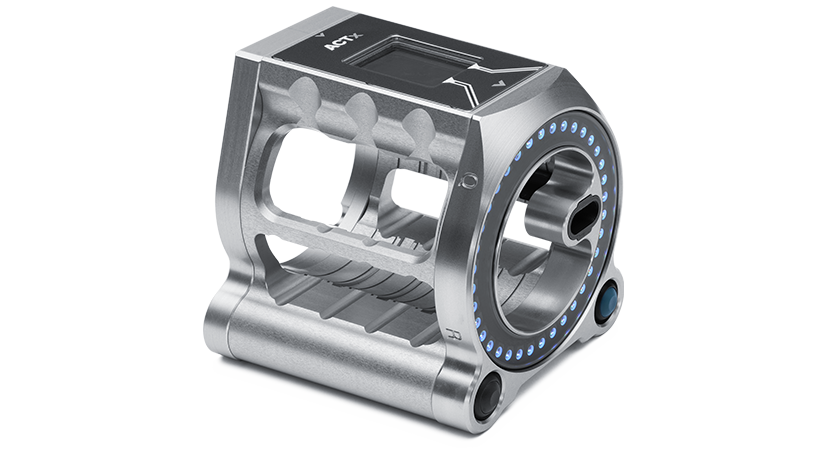

ACTx Orientation Jig - marking view
The patented orientation jig includes simple guides for efficient marking along the face and side of the core.

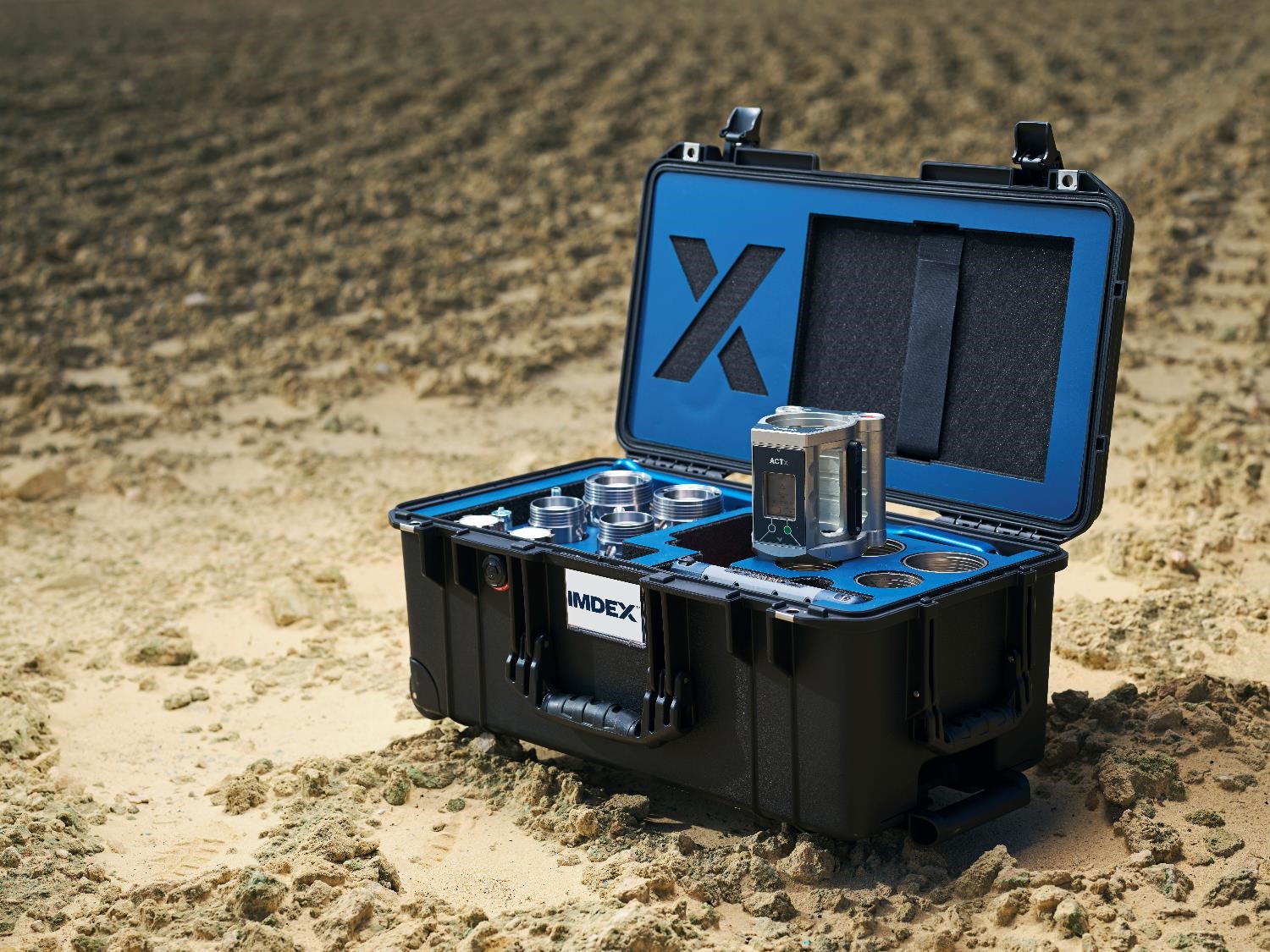

ACTx Digital Core Orientation kit
Enhanced safety, accuracy, and time to orient core at the drill rig site with ACTx digital core orientation
Get more from the core
For drillers, the ACTx significantly enhances safety and precision in core orientation, reducing the risk of manual handling issues and injuries. The quality assurance data automatically captured as part of the workflow ensures every orientation is validated, reducing errors and provides your customers with trustworthy data strengthening customer relationships.
Geologists in exploration and mining can rely on the data provided by ACTx to be accurate and reliable resulting in a better understanding of the geological structure, allowing them to make more confident and informed decisions ultimately resulting in enhanced drill-program management and geotechnical planning.
We’re committed to offering the highest level of support to our customers, which is why we have launched our Customer Care Portal, so you can receive support on our products and solutions, wherever you are in the world.
Core orientation is the process of determining the original position of a drill core sample. When combined with downhole survey results, it gives the core sample location and orientation before it was extracted from the ground. Geologists use this data to measure structural features, such as bedding planes, fractures and veins, aiding in the creation of a geological model and identification of subsurface formations.
There are two broad categories of core orientation methodology: manual and digital. These methods help determine the precise orientation of rock formations within a drill core sample.
Some core orientation methodologies include (and can be seen as complementary):
QA/QC data is important in core orientation as it removes the ambiguity of what went wrong if a poor orientation occurs.
Contact our digital core orientation experts
