Dimensions
Outer Diameter
35mm
Length
1,030mm
Weight
4.7kg
Azimuth (direction)
Range
0 to 360º
Accuracy
± 0.35º
Dip (inclination)
± 90º from horizontal
± 0.25º
Gravity roll (rotation/toolface)
0º to 360º
± 0.25º
Magnetic roll (rotation/toolface)
0º to 360º
± 0.35º
Tool magnetic field
0 to 100,000 nT
± 50 nT
Magnetic dip
± 90º from horizontal
± 0.25º
Depth rating
Depth rating
5,000m vertical in fresh water
Operating environment
Full accuracy (calibration range)
0ºC to 60ºC (32ºF to 140ºF)
Operating
-30ºC to 85ºC (-22ºF to 185ºF)
Storage
-45ºC to 85ºC (-49ºF to 185ºF)
Battery
Approximate battery life for downhole instrument:
Infrequent use
4 years
Normal use
2 years
Heavy use
1 year
Non-rechargeable lithium battery pack
-

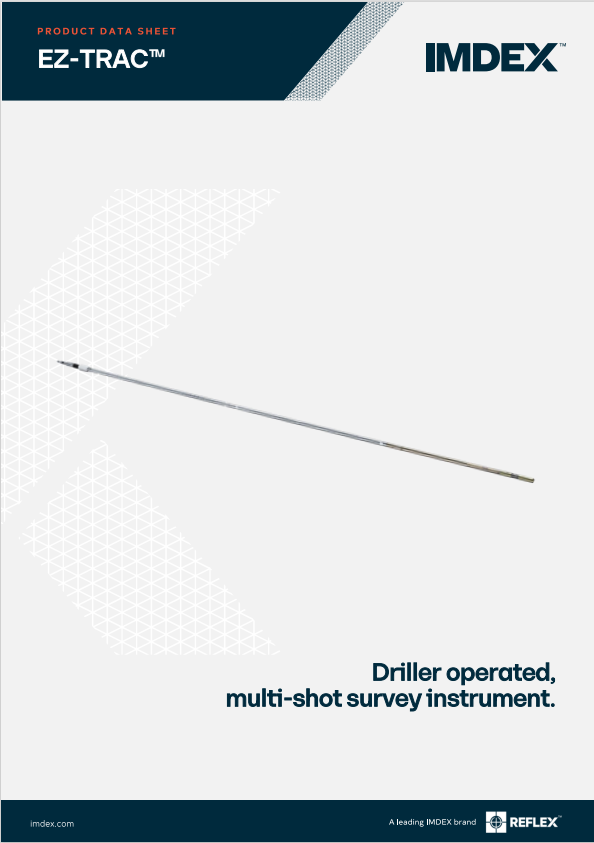

Product Data Sheet
